MIGS300-V601
Attribute:
High function industrial endoscope Tip Movable type φ 6.0 mm flexible cable
Share
Categories : Products , กล้องงู Endoscope ,
Share

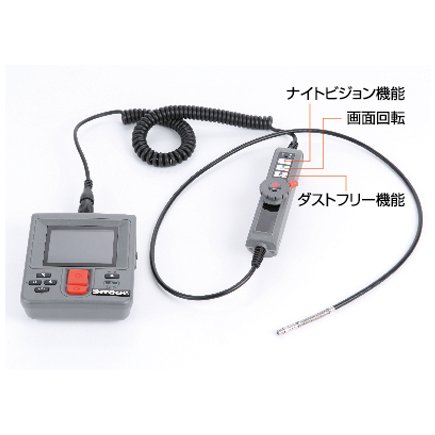

Low price! High function industrial endoscope Tip Movable type with monitor
●φ6.0mm flexible tip movable 2 directions
●High resolution (VGA) type
●The cable can be changed according to the application.
*Demonstration machine is only 1m.
｜Industrial endoscope body specifications
| Monitor | 3.5 inch TFT color liquid crystal(with tempered glass) about 300,000 pixels |
| Waterproof standard | IP55 standard IP55 is a dustproof and waterproof standard defined by JIS-2137. The content of the standard is to prevent dust from entering inside with a dustproof type. Normal operation is not disturbed even if some dust enters. Moreover, the structure is not adversely affected by direct jets of water from any direction. |
| Display Resolution | 320x240 |
| Save | SDHC card (supports up to 32GB) *When using an SDHC card (4GB), Capable of storing 50,000 still image Jpegs and 100 minutes video AVI data |
| Language | Japanese, English, German, Spanish, French, Italian, Chinese |
| Power Supply | AA battery x 4 (alkaline battery or nickel metal hydride battery) 5V 1A USB power supply available |
| Function | Dimming function/Zoom/Mirror reversal |
| Drive Time | About 4 hours (depending on LCD brightness) |
| Still image Recording Format | Jpeg (640×480) |
| Video Recording Format | AVI (640×480) |
| Operating Environment Temperature/ Humidity | -10 to 60°C/less than 90%RH (no condensation) |
| Storage Environment Temperature/ Humidity | 0 to 60°C/less than 90% RH (no condensation) |
| Size/Weight | Monitor: 116(W) X 140(H) X 42(D)mm /Approx.300g (excluding cables and batteries) |
｜Cable specification
| Cable Type | High resolution (VGA) φ6.0mm flexible tip movable 2 directions Tip protection ring diameter 6.5mm (removable) |
| Cable Features | Dustproof and waterproof equivalent to IP67 (IP67 is a structure that prevents water from entering even if immersed in water at a depth of 1m for 30 minutes.) Oil resistant (can adhere to gasoline, light oil, machine oil, and lubricating oil) Viewing angle 87°/focal length 10mm to 1000mm/ CMOS sensor |
| Lighting | 4 white LED lights (dimmable) |
｜Main features

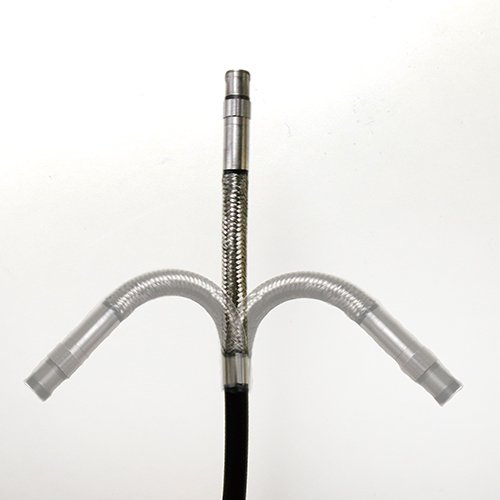

By turning the controller left and right, the tip bends 180° left and right.
Equipped with a lock function to maintain the bent state
Twice the resolution of conventional!
You can inspect with a clear image with high resolution of VGA.
Brighten up dark places
Night vision function included
Night vision function off
Night vision function on
An image showing dust adhering to the mirror
Convert to a clear image at the touch of a button
Dust-free function off
Dust-free function on
With convenient hand strap
Easy data transfer with SD card
[Accessories]
・Endoscope body
・Cable
・4 AA batteries
・Battery cover small screw
・USB cable
・AV cable
・SDHC card
・Hand strap
・Hard case
