Fixed Focus Lens(1 inch 20M pixel)
Share
หมวดหมู่ : Product Trial ,  Products ,  Fixed Focus Lens ,
Share
1 inch 20 million pixels compatible! !
High resolution fixed focal length lens
|Specification

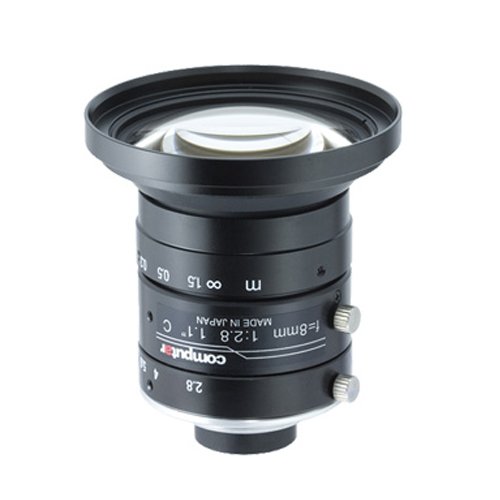

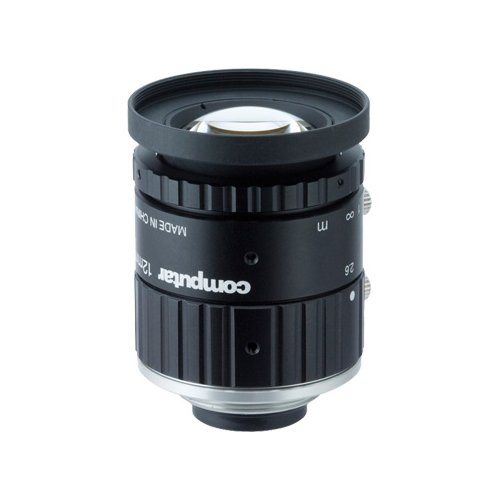

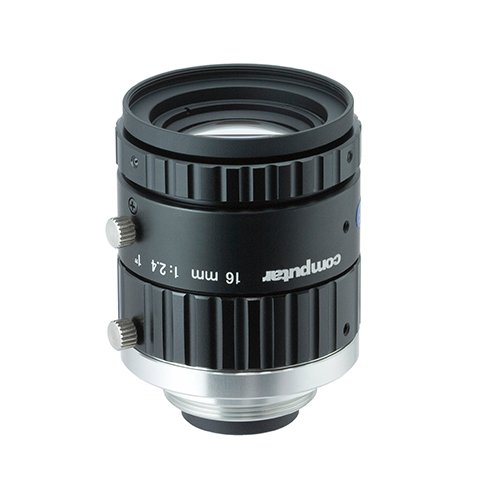

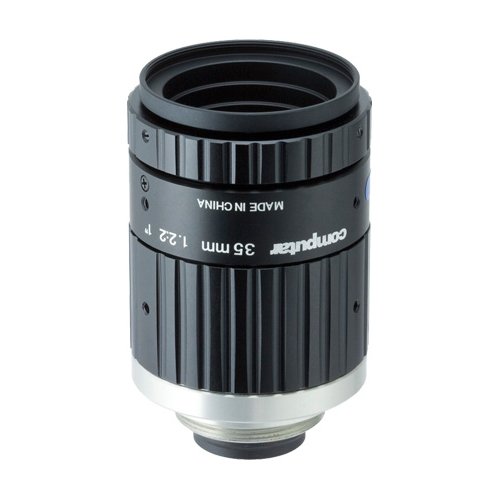

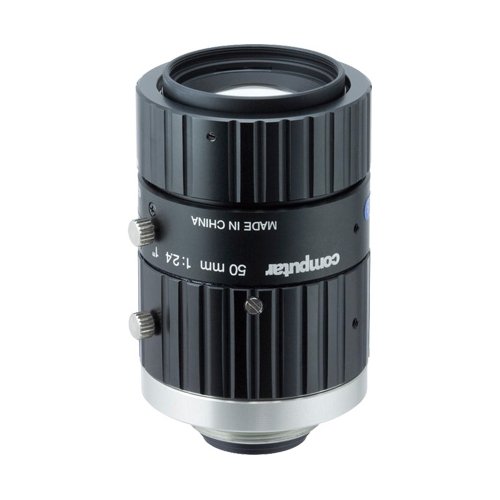

Model Number | SM0826-MP20 | SM1226-MP20 | SM1624-MP20 | SM2520-MP20 | SM3522-MP20 | SM5024-MP20 |
Focus Distance | 8mm | 12mm | 16mm | 25mm | 35mm | 50mm |
Aperture Range | F2.6-F16(with lock screw) | F2.6-F16(with lock screw) | F2.4-F16(with lock screw) | F2.0-F16(with lock screw) | F2.2-F16(with lock screw) | F2.4-F16(with lock screw) |
Lens Mount | C Mount | |||||
Compatible Camera Sensor Size | 1 inch | |||||
Horizontal/Vertical Angle Of View | 76.9°・ 61.5° | 56.7°・ 44.1° | 43.8°・ 33.6° | 28.8°・ 21.8° | 20.8°・ 15.7° | 14.6°・ 11.0° |
Distortion(at 1″) | -0.8% | 0.0% | 0.0% | 0.0% | 0.0% | 0.0% |
Dimensions | φ69.5×62.83mm | φ39×51.4mm | φ39.5×56.49mm | φ37.5×52.94mm | φ39.5×63.9mm | φ42×67.15mm |
Weight | 203.1g | 98.4g | 108.1g | 73.1g | 118.2g | 138.5g |
Closest Distance | 0.1m | 0.1m | 0.1m | 0.15m | 0.2m | 0.2m |
Filter Screw Size | - *Please contact us. | M37.5×0.5 | M35.5×0.5 | M35.5×0.5 | M34x0.5 | M30.5×0.5 |
Operating Temperature Limit | -20℃ - +50℃ |
