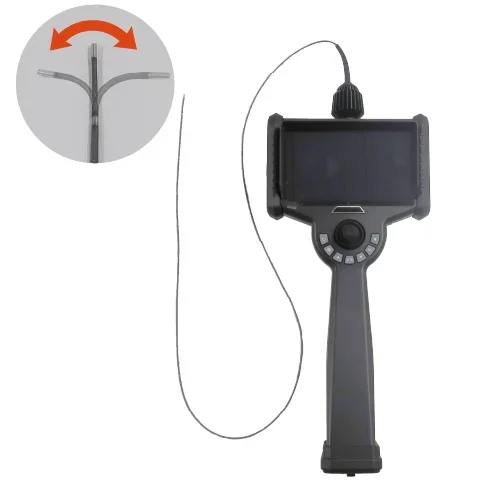

MIVS-1805TPA2

So slender, yet fully maneuverable.
With an articulation tip, you won't miss a thing.

● Ultra-slim industrial endoscope with a 1.8mm diameter (0.5m cable length)
● 6-inch touchscreen monitor for easy viewing
● Fiber-optic illumination delivers powerful lighting and natural white light
● Detachable cable design allows for the attachment of cables in different sizes
● HDMI output enables image sharing among multiple people

Features of Industrial Endoscopes
Despite its ultra-slim diameter, the tip articulates in two directions.

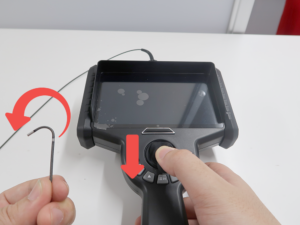

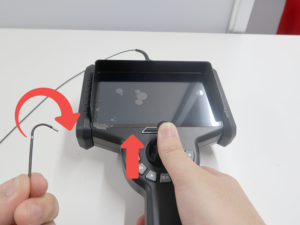

Moving the lever on the main unit up or down allows the tip of the industrial endoscope to bend in two directions.

Uses optical fiber! Delivers powerful illumination and natural white light.

In close-range observation, differences in lighting directly affect how the subject appears.
With ultra-slim endoscopes, the distance to the target object is often just a few millimeters.
With standard LED lighting, the image can take on a bluish tint as the scope gets closer, making it difficult to discern the object's true colors.
Therefore, the lighting method plays a crucial role in determining observation quality when inspecting for minute anomalies such as scratches, burrs, or foreign objects.

On the left is a Shodensha optical fiber
On the right is a small-diameter endoscope with an LED tip.

Differences in appearance based on lighting method

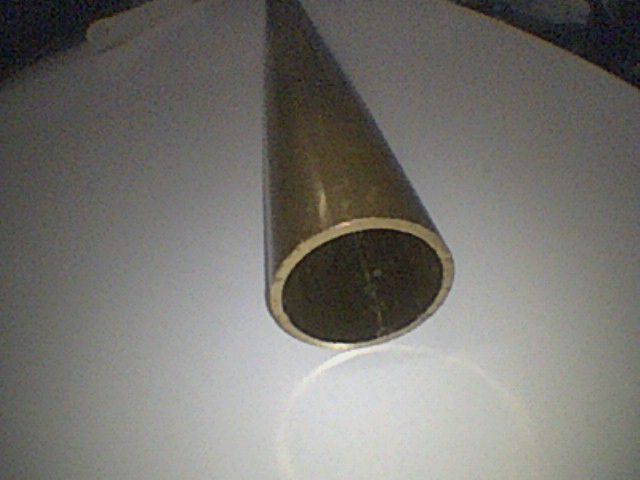

Shodensha fiber optics (640x480)



Small-diameter endoscope with tip-mounted LED (400x400)



Powerful Illumination
With LED-based systems, the smaller the tip diameter, the smaller the LED must be, often resulting in insufficient light output.
Shodensha’s fiber optic technology delivers light from a powerful external source all the way to the tip, ensuring ample brightness even with ultra-fine diameters.
This enables clear observation, even in narrow, dark spaces.

Maximum light output of Shodensha’s fiber optics
(16,300 lx at a distance of approx. 5 mm)


Maximum light output of a small-diameter endoscope with an LED at the tip
(3,500 lx at a distance of approximately 5 mm)


Stunning 300,000-pixel imagery
Compared to conventional industrial endoscopes, this model offers superior image processing capabilities—including noise reduction—to deliver clear visuals.
The difference in image quality is striking when compared to earlier 300,000-pixel models.

The image below shows the interior of a USB 3.0 port (captured at the same 300,000-pixel resolution).
MIVS-1805TP (this model)


Older model small-diameter endoscope


Even with the same resolution, the image quality surpasses that of older industrial endoscopes in every respect—including color reproduction, focus, and brightness.
You can clearly view areas that were previously difficult to see.

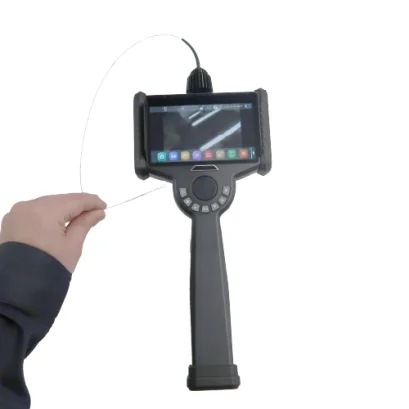

"High maneuverability" achieved precisely because of the ultra-slim, short design.

Smooth insertion and operation—even in tight, complex spaces—and stress-free cable handling.

Ideal for inspecting a series of holes! (Video)

Improved operability with a compact, simple stand.
You can adjust the monitor to an angle that is easy for the operator to view while performing observations.


The wide-angle design, featuring a 120° field of view, enables the inspection of a broad area.
By providing a wider field of view compared to the 60° angle typical of industrial endoscopes,
it contributes to increased inspection efficiency and reduced work time.


Features a highly durable tungsten steel cable.
It resists damage even in environments with significant dirt or obstacles and is easy to clean.
It ensures the durability and reliability required for ultra-slim endoscopes.


Large 6-inch screen designed for ease of use in the field.
Functions such as saving still images and videos, as well as adjusting brightness, can be controlled via the touch panel.

Regarding still image capture, you can take photos using the button on the back of the unit, making it easy to capture images while holding the endoscope itself.


Focuses from as close as 2 mm!
You can observe subjects with clear imagery from a distance of just 2 mm.
Many conventional endoscopes have a minimum focusing distance of 10 mm or more, meaning they lose focus if brought too close.
However, this product is designed for insertion into extremely narrow openings,
allowing it to maintain focus even at a distance of 2 mm.
This enables detailed observation and inspection of narrow, recessed areas.


Features a detachable probe.
Since the probe can be replaced independently, the unit offers a long service life.
The cable section (probe)—the part subject to the most stress—is detachable.
In the unlikely event of damage, you can replace just the probe rather than the entire unit, allowing for cost-effective repairs and peace of mind during use.


Specification

Accessories

①Endoscope body
②Charger for lithium battery
③Lithium battery x 4
④HDMI cable
⑤MicroSD card reader
⑥MicroSD card 32GB
⑦Simplified tripod
⑧AC adapter
⑨USB cable Type C 1.0m
