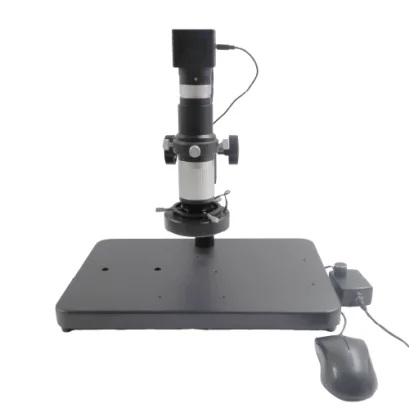

TG400PT
Attribute:
4K Microscope
Share
Categories : Product Trial , Products , 4K Microscope ,
Share
● Mid-range magnification: 20x to 120x
● Features up to 4x digital zoom
● Records still images and video to a microSD card
● Optional 0.5x auxiliary lens allows for a 160mm working distance and 10x–60x magnification
*Monitor not included.
Microscope Features
1. Observe at up to 480x magnification with 4x digital zoom!
Digital zoom allows for up to 4x magnification.
Because it's a high-resolution 4K camera,
the subject remainsclearly visible even when using digital zoom.
No digital zoom
With digital zoom (4x)
No digital zoom
With digital zoom (4x)
Video demonstrating digital zoom use
2. Excellent color reproductionObserved using a color palette
3. Crosshair display available!Crosshairs can be set to black or white.
Black crosshairs
White crosshairs
4. Highly responsive auto-exposure function!
｜Specifications
| Magnification | 20x – 120x *Calculated value based on a 17-inch |
| Working Distance | 100mm *Remains nearly constant regardless of magnification |
| Field Of View | 20.0mm x 11.2mm (at 20x) |
| 3.3mm x 1.8mm (at 120x) | |
| Imaging Sensor | 1/1.8”CMOS |
| Pixel Size | 2.0μm x 2.0μm |
| Resolution | 3840 x 2160 (4K) |
| Frame Rate | 60 fps |
｜Accesories
・4K camera
・USB Type-C to Type-A cable (1.5m)
・USB wall adapter
・microSD card (64GB)
・Remote control
・HDMI cable
56 LED Ring Light
Zoom Lens
Stand
Protective Cover
