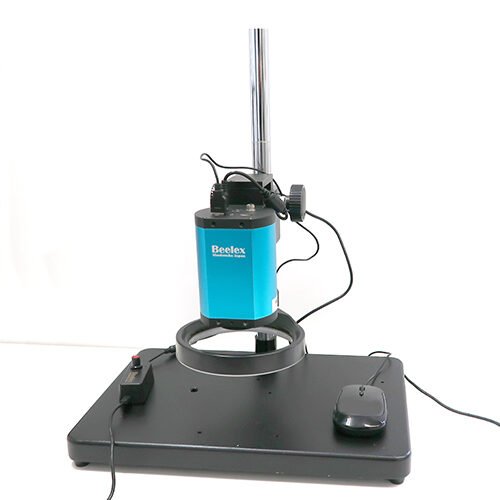

Auto Focus Digital Loupe



High-speed autofocus is possible automatically at the center of the screen

●Shodensha's industrial camera Beelex series
●Fast autofocus
●Full high-definition 2 million pixels!
●Up to 20x

Feature Video
●Fast autofocus
Autofocus speed is faster than previous models!
Focuses on the center of the screen at fast.

●Optical zoom function

●Digital zoom function

Save video/still image storage/playback possible

Can be saved with just the camera
Videos and still images can be stored on the camera body.
Equipped with save and playback functions

Still images: JPEG format, BMP format
Video: H.264

Observation image

Specifications *Magnification is a calculated value based on a 22-inch monitor.

Working Distance100mm - ∞
Field Of ViewWorking distance:100mm(closest distance)
171mm x 92mm(at 3x)
24.3mm x 13.5mm(at 20x)
Working distance:200mm
235mm x 132mm(at 2x)
32.4mm x 18.2mm(at 15x)
Image Sensor1/2.8”CMOS
Resolution1920 x 1080(Full HD)
Recoding MediaUSB flash drive
Recording File FormatStill image:JPEG/BMP Video:H.264


・Auto focus camera
・AC adapter
・USB flash drive(16GB)
・HDMI cable

Large diameter LED ring lighting

Camera stand

Extension kit

Protective cover
Easy connection
Direct connection to HDMI monitor
*We recommend a PC monitor with HDMI port or industrial monitor.
(TV for home use are not compatible and may not be displayed.)
*Please use a 16:9 HDMI monitor.
We have a demo machine of camera available, so please check it out. Please contact technical support for details.
