HDCE-500T

Attribute:

USB3.0 camera for Stereo Microscope

Share

Share

Supports USB3.0 with less display delay

●Supports USB3.0 with less display delay
●Viewer software standard equipped
●Compatible with Windows 11
*Equipped with USB3.0 port

Specification

Image Sensor1/2.5”CMOS
Number of Pixels5.0 Mega pixel
Pixel Size2.2μm X 2.2μm
Resolution
(Frame Rate*)
2592×1944(18fps)
*Actual frame rate may vary depending on
PC performance and setting environment.


System Requirements

Supported Operating SystemWindows 10, 11
CPUIntel core i5 or above
RAM8GB or more

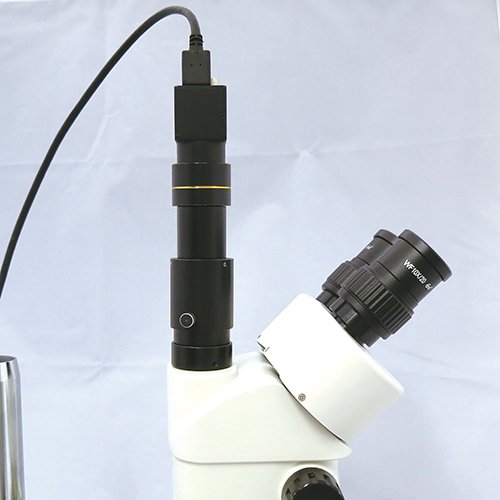

Compatible with most microscopes

Can be attached to φ23.2mm or φ30.0mm eyepieces and trinocular straight barrels

|Accessories

・USB3.0 Cable
・Eyepiece mounting adapter (φ23.2-φ30.0mm)
・Viewer Software

|Features
Equipped with a USB 3.0 camera with ultra-high speed and no display delay.
High resolution of 5 Mega pixels.
14 fps at 2592 x 1944, more than four times faster than USB 2.0!

Introduction of Viewer software

Functions of simple measurement software provided as standard

Saving still images
Distance measurement between two points
scale display
Crossline/gridline display
Fit-in function, digital zoom function
Supported OS: Windows 10 or later
* The standard accessory software is a functionally limited version.
If you need a measurement other than the distance between two points or a focus combination function
Please purchase the optional measurement software.
*The glass scale for calibration is an option.


About the field of view of the microscope camera

When inspecting with a microscope camera,
The field of view is narrower than when inspecting with eye.
