Comes with a removable diffuser plate!
High luminance type with 80 lights arranged in 2 lines
●Inner diameter φ70mm, tip inner diameter φ60mm, outer diameter φ96mm
●With removable diffuser plate
●Separate control box type. Convenient because it can be dimmed at hand.
●Can be attached to digital microscopes, stereo microscopes, etc.
●The body is a sturdy metal case. Good heat dissipation efficiency
It can be attached to a stereo microscope that has a groove cut in the skirt of the objective lens.
Stereo microscopes without grooves can be used with convenient options.
Use with digital microscope
Use with macro lens *In conjunction with optional LED angle
|LED||80 high luminance white lights|
|Illuminance||35000lx or more|
(50mm distance with diffuser plate)
70000lx or more
(50mm distance without diffuser plate)
|Mounting Diameter||φ30mm - φ65mm|
|Maximum Power Consumption||25 VA or less|
|Power Supply||AC100 - 240V|
Separate control box. Convenient because it can be dimmed at hand.
Dimmable with control box separate from LED body

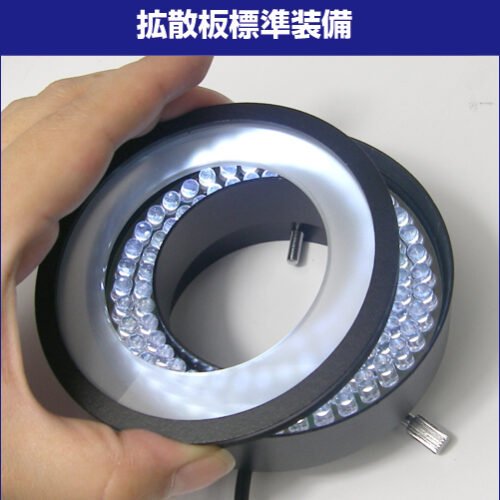

Diffuser plate is standard equipment
Equipped with a diffuser plate as standard on the front of the LED.
(The diffuser plate can be removed.)

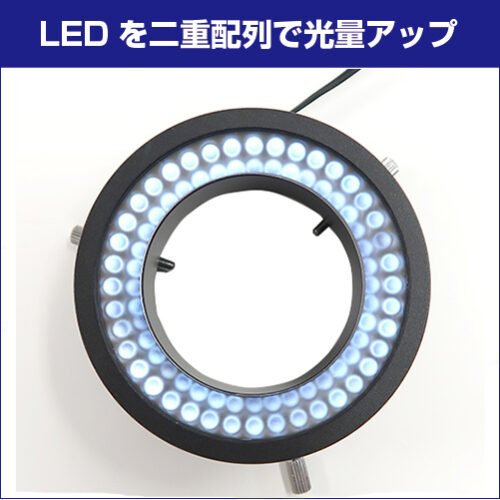

Double lines of LEDs
Double array of 80 LEDs increases light intensity
｜About the installable size
If all 3 screws are loosened,
Can be attached to GR10-N lenses with an inner diameter of up to φ70mm.
If the 3-point screw is tightened,
Can be attached to lenses with a diameter of φ30mm or more.
