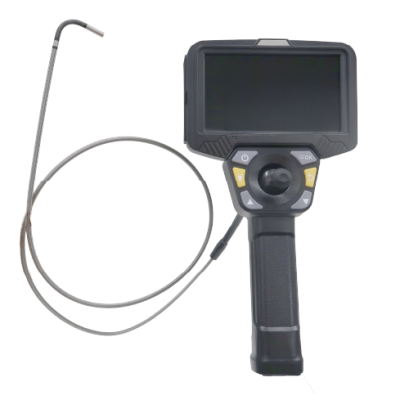

กล้องเอนโดสโคปอุตสาหกรรมขนาดเล็ก 4.9mm เคเบิ้ลอินเตอร์ล็อค


หมวดหมู่ : Products กล้องงู Endoscope


Low price! Switch type industrial endoscope with monitor

● φ4.9mm interlock cable
● Direct view/side view switching type
●The cable can be changed according to the application.
*Demonstration machine is only 1m.

Industrial endoscope body specifications

Monitor3.5 inch TFT color liquid crystal(with tempered glass)
about 300,000 pixels
Waterproof standardIP55 standard
IP55 is a dustproof and waterproof standard defined by JIS-2137.
The content of the standard is to prevent dust from entering inside with a dustproof type.
Normal operation is not disturbed even if some dust enters.
Moreover, the structure is not adversely affected by direct jets of water from any direction.
Display Resolution320x240
SaveSDHC card (supports up to 32GB)
*When using an SDHC card (4GB),
Capable of storing 50,000 still image Jpegs and 100 minutes video AVI data
LanguageJapanese, English, German, Spanish, French, Italian, Chinese
Power SupplyAA battery x 4 (alkaline battery or nickel metal hydride battery)
5V 1A USB power supply available
FunctionDimming function/Zoom/Mirror reversal
Drive TimeAbout 4 hours (depending on LCD brightness)
Still image
Recording Format
Jpeg (640×480)
Recording Format
AVI (640×480)
Operating Environment Temperature/
-10 to 60°C/less than 90%RH (no condensation)
Storage Environment Temperature/
0 to 60°C/less than 90% RH (no condensation)
Size/WeightMonitor: 116(W) X 140(H) X 42(D)mm
/Approx.300g (excluding cables and batteries)

Cable specification

Cable Typeφ4.9mm interlock cable
Cable FeaturesDustproof and waterproof equivalent to IP67
(IP67 is a structure that prevents water from entering even if immersed in water at a depth of 1m for 30 minutes.)
Oil resistant (can adhere to gasoline, light oil, machine oil, and lubricating oil)
Viewing angle 56°/focal length 10mm to 60mm/CMOS sensor
Lighting3 white LED lights (dimmable)
*Supplied with both direct view and side view
AccessoriesEndoscope body, cable, 4 AA batteries, battery cover screw,
USB cable, AV cable, SDHC card, hand strap,
hard case

Main features

Tip diameter 4.9mm
Interlock type
Direct view and side view can be switched with a switch.

3 white LED lights (dimmable)
Supplied with direct view and side view

With convenient hand strap

Easy data transfer with SD card

・Endoscope body
・4 AA batteries
・Battery cover small screw
・USB cable
・AV cable
・SDHC card
・Hand strap
・Hard case
